Radiall was founded in 1952 as a family-owned company making coaxial plugs for the television industry. Today, Radiall is an international and global manufacturer of interconnect components including RF coaxial connectors and cable assemblies, antennas, fibre optic and microwave components, and multipin connectors. Radiall serves the Aerospace, Automotive, Defense, Industrial, Medical, Space, and Telecommunication industries.

The innovating solutions integrator for today and for tomorrow.
Our expertise in interconnect technologies and our intimate market knowledge establish us as a key player in the industries we serve.

“Be the best and work for the best”, Pierre GATTAZ, CEO

Worldwide engineering & manufacturing capability.
With expertise centres and manufacturing locations on 3 continents and 12 industrial sites, Radiall offers its customers the proximity needed to provide the best quality, service and delivery performance.
Our facilities feature state of the art equipment for the many technologies involved in the design, manufacturing and assembly of interconnect solutions. Manufacturing plants based in low-cost countries give Radiall the opportunity to offer quality at competitive prices.

Radiall Product Line Brochure 2021

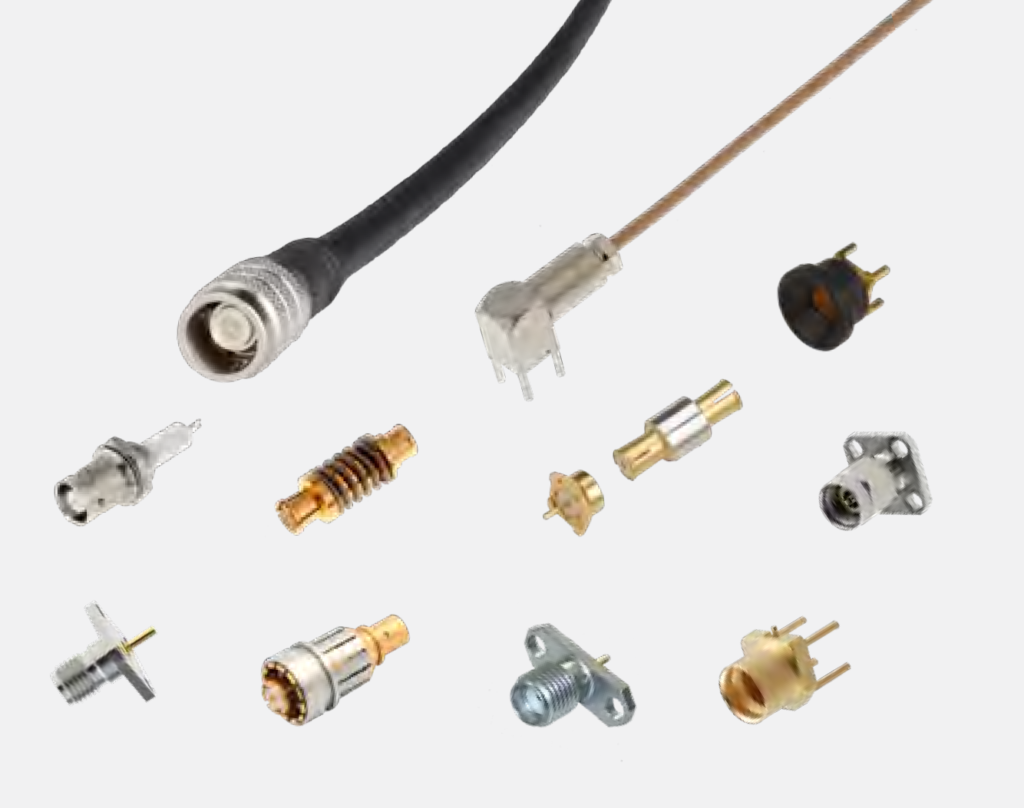

RF Connectors

A comprehensive range of RF connectors up to 100 GHz
All standard series: SMA, SMP, SMPM, N, TNC, SMB, SMC, SSMC, MMCX, MCX, BNC
Blind mate: SMP, SMPM, SMPW, BMA
High-frequency precision connectors for test: 2.4 mm, SMA 2.9, TNC18
High-power antenna, low PIM connectors: NEX10, 4.3-10, 4.1-9.5, 7-16
High voltage connectors: BNC HV/MHV, HN, SHVLocking connectors: SMP-LOCK, SMB-LOCK, TNC Self-lock, SMA 2.9 Self-lock
MIL-PRF-39012 QPL connectors
Quick-Lock Formula (QLF) certified QMA and QN, and ruggedized version QRE
RF Board-to-Board interconnects: SMP-MAX, IMP-MAX, POWER-MAX, IMP, MMBX
Switching connectors: Moebius, MC-Card, SMA, QN
Waterproof, stainless steel, lightweight, hermetic and nonmagnetic connectors available

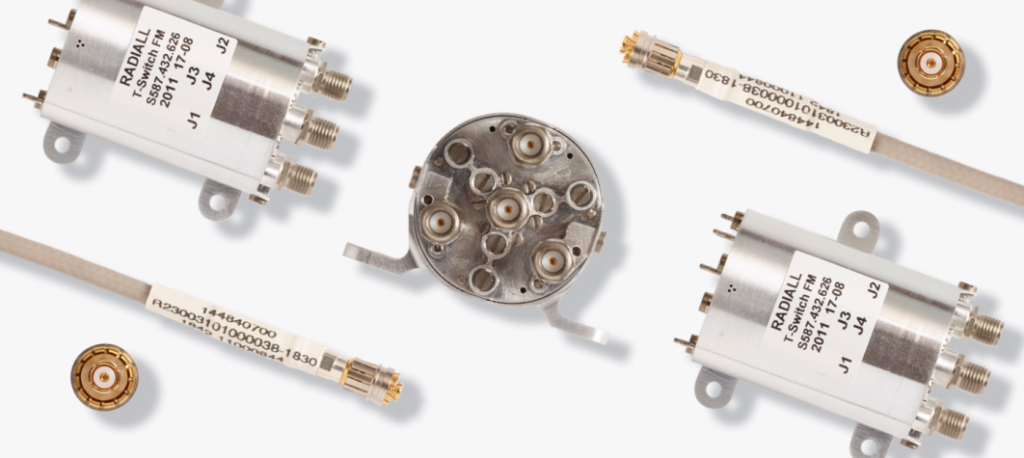

Space Qualified Components

A comprehensive range of space-qualified coaxial components up to 50 GHz
Large connector interface selection: SMP, SMP-LOCK, 2.4 mm, SMA, SMA 2.9, TNC and Very High Power TNC
Various products are available for RF transmission in space including switches, connectors, attenuators,
loads, semi-rigid and low loss flexible cable assemblies, couplers, dividers and phase shifters

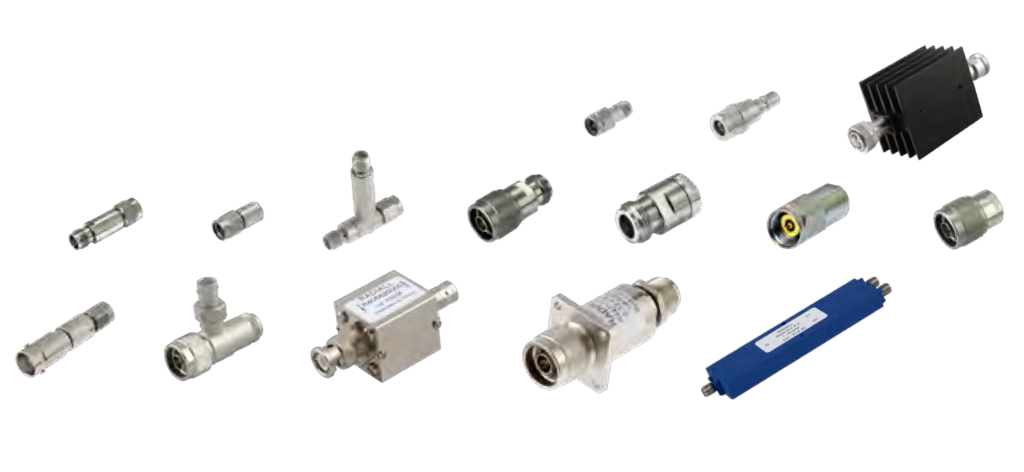

RF & Microwave Components

A comprehensive range of components up to 50 GHz
Type N, BNC, TNC, SMA, SMA 3.5, SMA 2.9, 2.4 mm
Medium and high power terminations and attenuators up to 6 GHz and 1 kW
Power dividers/combiners up to 26.5 GHz
Rotary joints, phase shifters
Low PIM models
Microwave filters

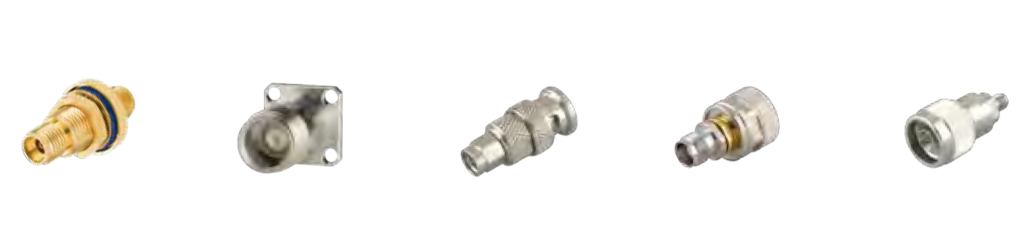

RF Coaxial Adapters

Large selection of in-series and between-series
50 and 75 Ohm
Push-on and quick-disconnect models for production test
Precision adapters for test lab
Many configurations available: straight, bulkhead, flange mount, press in, right angle, sealed, hermetic

Radiall RF Coaxial Adapters

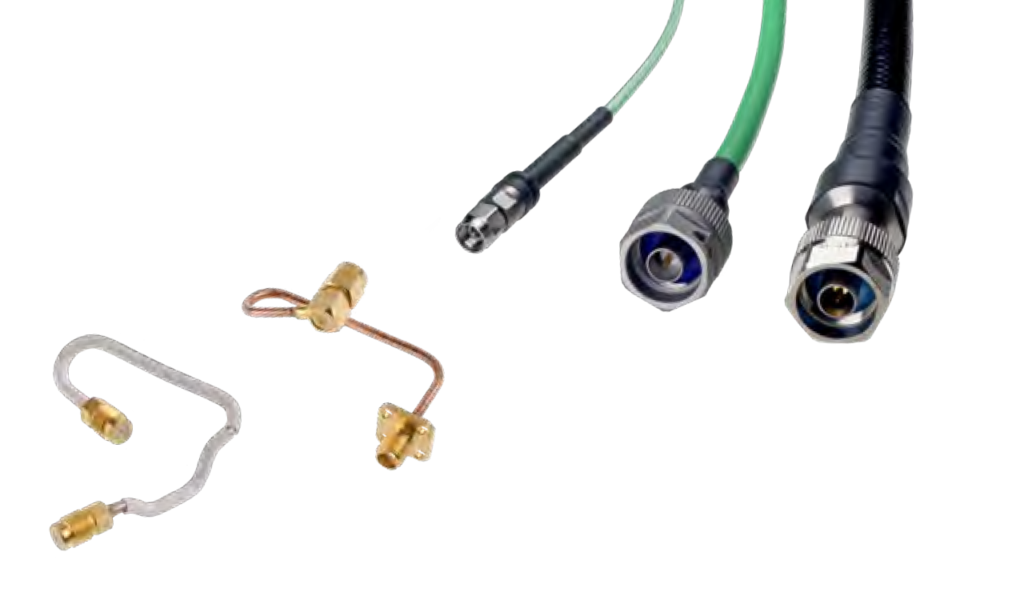

RF Cable Assemblies

Standard Cable Assemblies

Proprietary Cable Assemblies

Short-bend
SHF Ultra Low Loss
- Loss optimized up to 67 GHz
- Phase matching option
- Armoured, lightweight and airframe versions
Custom cable assemblies and lengths are available

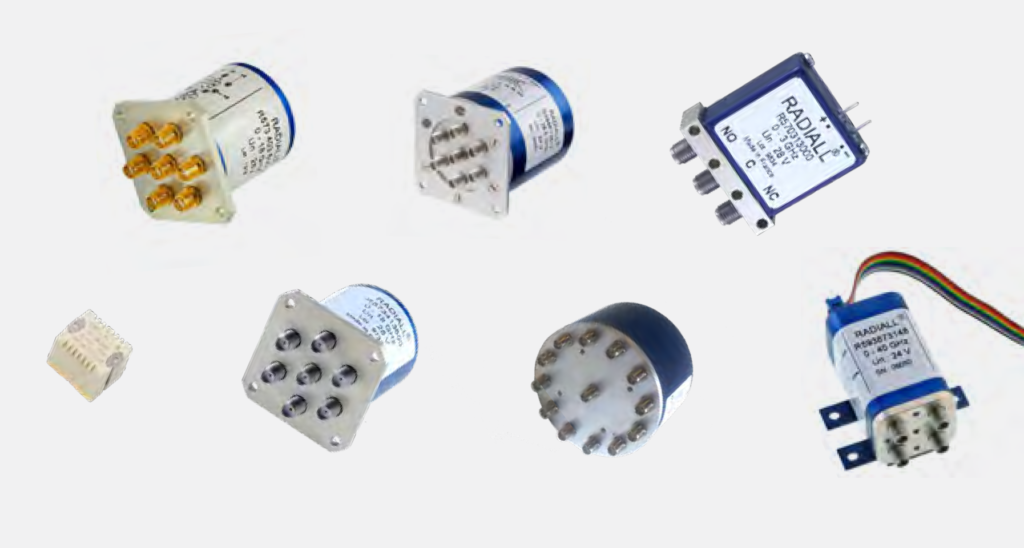

RF & Microwave Switches

High-reliability RAMSES patented modular technology
More than 10 million cycles
Frequency range up to 50 GHz
A comprehensive range of SPDT, DPDT, DP3T, SPnT (1×3 through 1×12)
Terminated and unterminated versions
Smallest subminiature SPnT series
TVAC switches (Thermal Vacuum) for ground segment application
High-performance titanium and platinum switches with long life

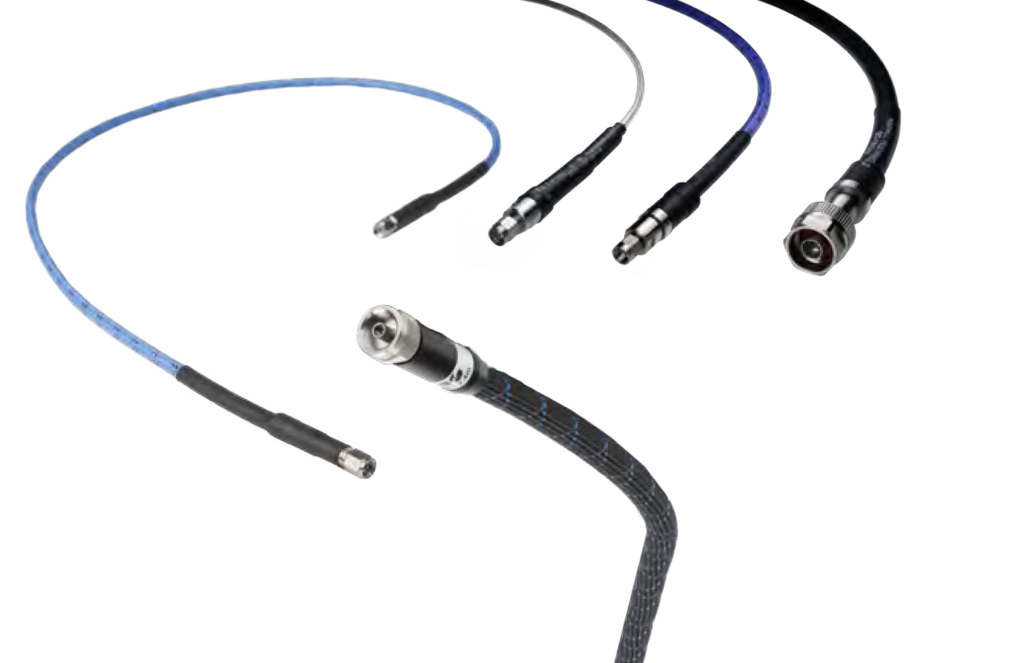

Testpro Cable Assemblies

VNA TestPro grade 40, 50 and 67 GHz
Lab TestPro grade 18, 26.5, 40, 50 and 67 GHz
Low Loss TestPro
5,000 mating/unmating life cycles
Flex life: over 50,000 flex cycles per MIL IEC966-1
Phase and loss stability for long calibration intervals

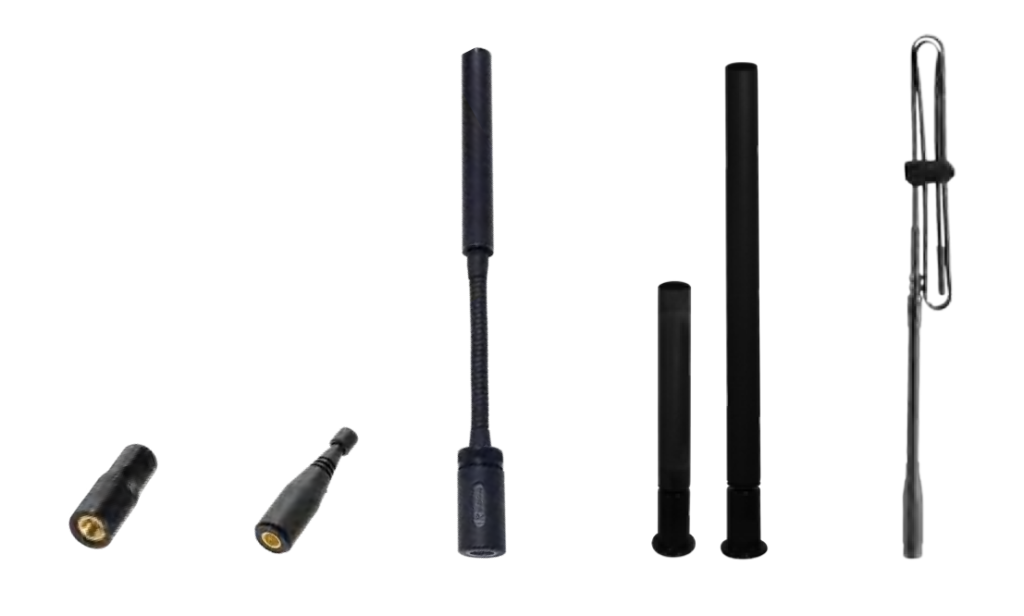

Antennas

Manpack, vehicle and handheld radios
UAV/UGV2 and other sensors
Airborne, onboard and external
Antenna frequency: 30 MHz and up
Single, dual and multi-band, external or embedded
Active and passive GPS (L1 and L1/L2)
Overmolded, whip, patch printed
N-type, TNC, SMA and speciality connectors

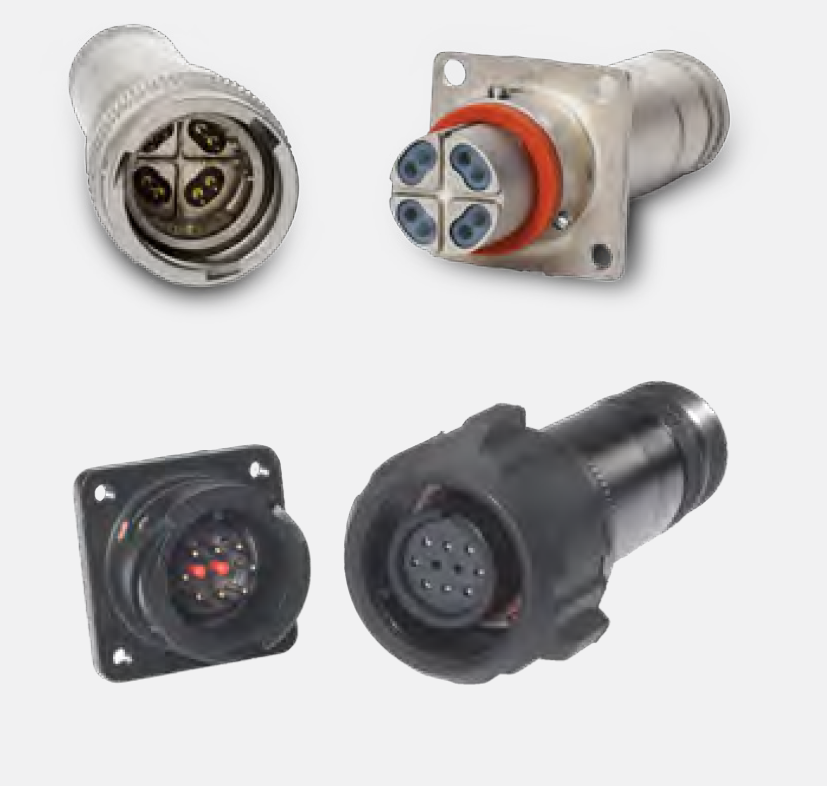

Optical Interconnect Solutions

Harsh Environment

Test Ruggedized FO contacts: LuxCis®
ARINC 801/EN4639-101 with its expandable range of rectangular and circular connectors
ABS1379/EN4531-101 optical contacts
High-density MT-based interconnects for harsh environments: C-MTitan™ and Q-MTitan™ ARINC 846
Various Expanded Beam solutions:
ExoBeam™ tactical cable assemblies, EB-LuxCis®
Ruggedized simplex and duplex LC, SC and ST connectors

Full Cable Assemblies and Harnesses

Simplex and multichannel assemblies designed by Radiall or built-to-print
Synergy with active optics from D-Lightsys®
Fibre management accessories
Field kits, test and maintenance solutions and training

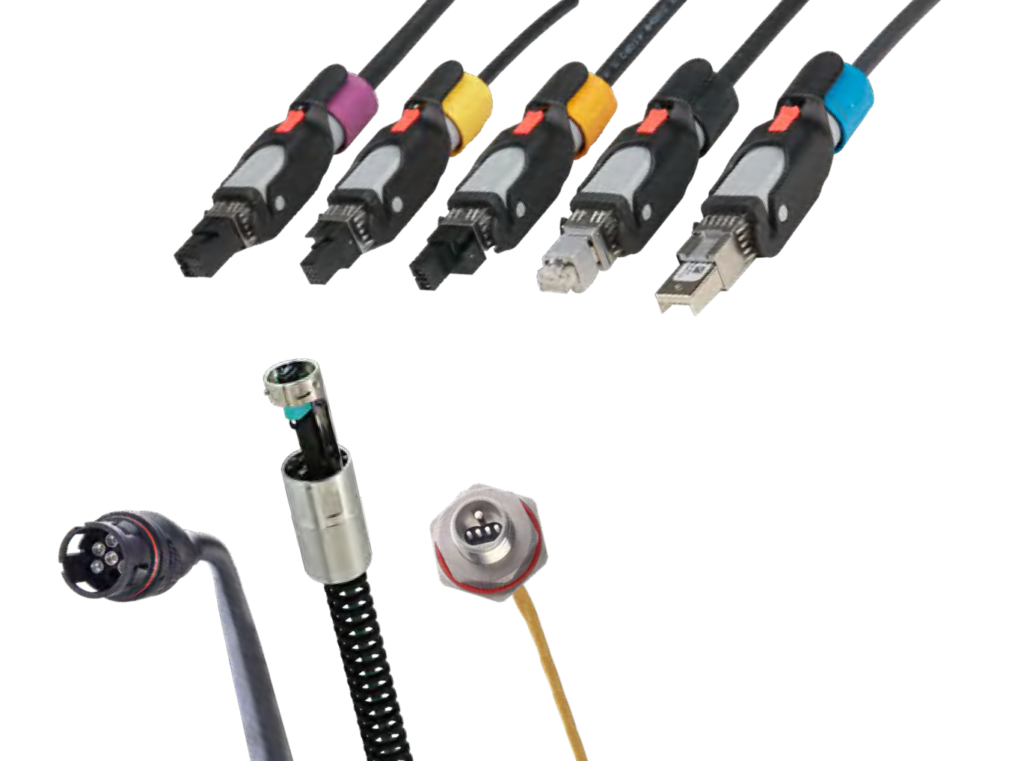

Outdoor Interconnections

OCTIS™: robust I/O solution for outdoor small cell and next-generation RRU/RRH
- Lightning and EMI protection
- SFP/SFP+ transceiver integration, RJ45 for CAT 5E or CAT 6 Ethernet signal, power (AC/DC), signal, hybrid of power and signal
R2CT®: flexible outdoor solution for FTTA and wireless telecom applications
RX F : two and four-channel outdoor optical connector
OPUS: push-pull compact solution for fibre optic and coaxial outdoor links

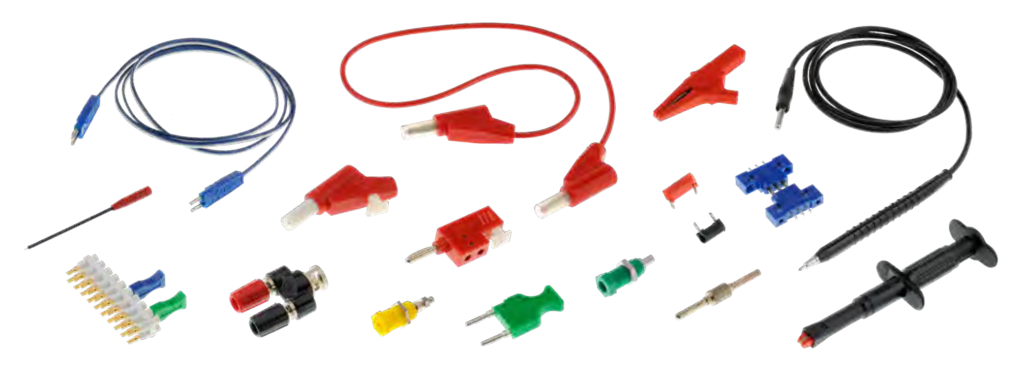

Banana Plugs

2 mm, 4 mm and adapters
Excellent electrical conductivity
Very low contact resistance
Robust contact point pressure when connected
Outstanding durability for high number of mating cycles

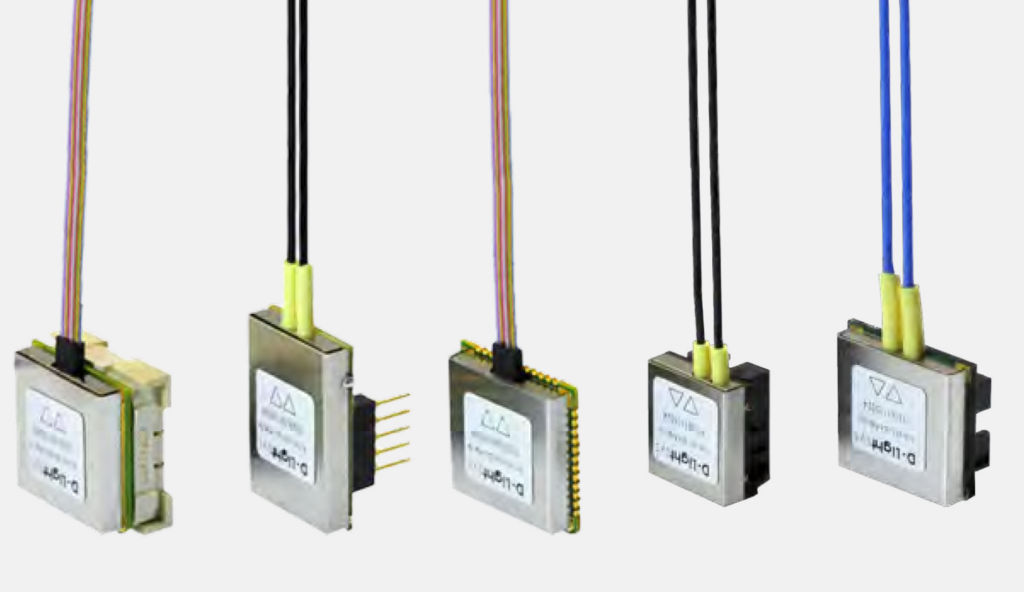

Active Optics

Complete range of high-performance optoelectronic Active Optics by D-Lightsys®
Fully qualified for harsh environments: DO-160; MIL-STD; ARINC 804
Smallest form factor for single-channel and multichannel modules (6.5 mm2/ch/Gbps)
Lowest power consumption (<50 mW/ch Gbps)
Protocol independent and large bandwidth per channel (from DC to 10 Gbps)
Various packages and form factors available (LCC, Socketed, SFF, others)
Flying since 2007

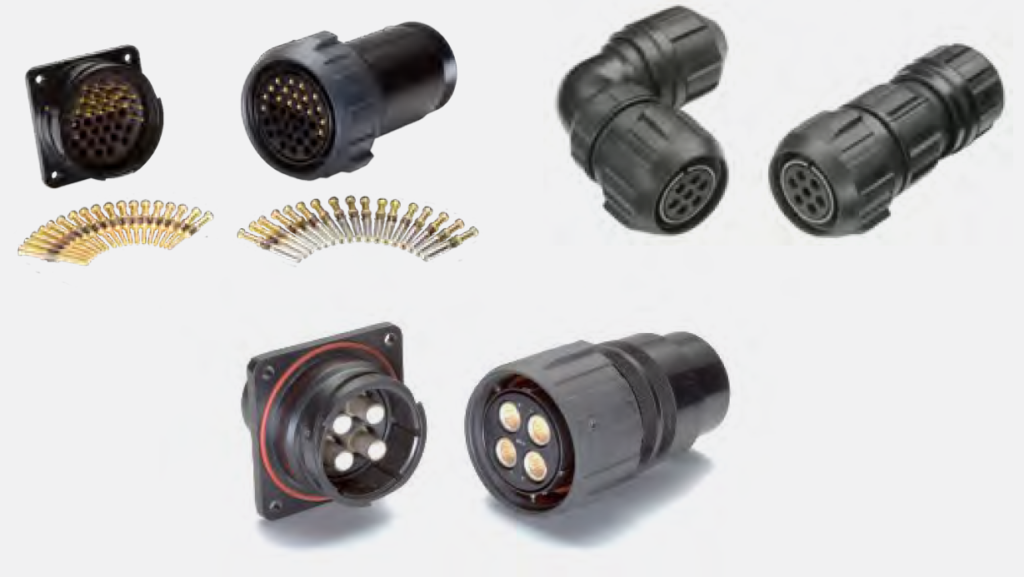

Multipin Industrial Connectors

For use in railway and other industrial applications

Circular Connectors Derived from MIL-STD-5015 VG95234

Industrial	Railway	Description
KVBS	RF KVBS	Thermoplastic insert. Insulation according to NFF 61030
CVB	RF CVB	Reverse bayonet, faster coupling and anti-vibration
CVBS	RF CVBS	Bayonet protected by stainless steel stud, heavy-duty
CVBR	RF CVBR	Coupling nut with roller-stud, higher number of mating cycles
GVJ	RF GVJ	Reverse bayonet, oversized shell, more robust
CVS	RF CVS	Threaded connectors
CT	RF CT	Reverse bayonet derived from MIL-C-26482 Series 1

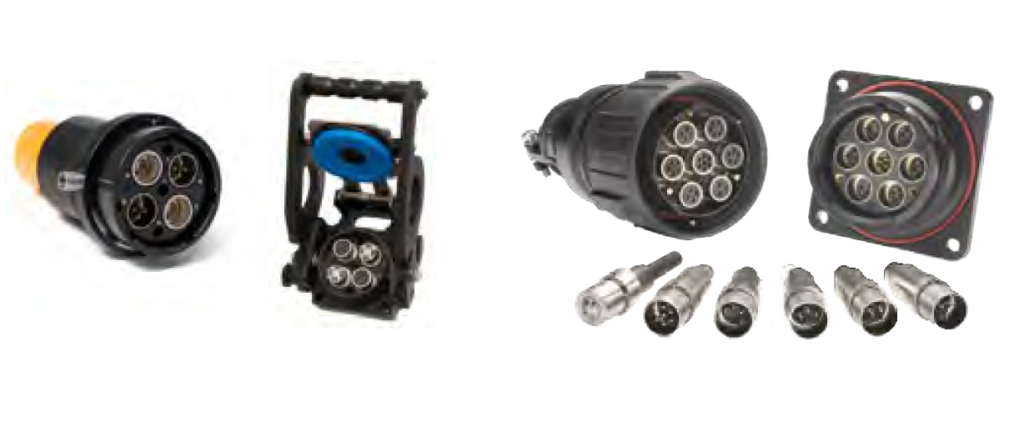

Modular Connectors

Series	Description
GM	Modular connectors system
GMM	Modules are available for many different applications: Ethernet data, RF coaxial, fibre optic, power, signals up to 14 wires
GMH	Modular connectors system with handle
